An accessible washroom is a space designed so that people with physical disabilities, limited mobility, or age-related challenges can use it safely and independently, without needing assistance for every movement. It’s built around how people actually move, not how designers assume they do. And a handicap toilet is the centerpiece of that design.
Walk into most public washrooms labeled “accessible” and you’ll spot the problem within seconds. The grab bar is there, but positioned where no one transferring from a wheelchair can actually reach it. The turning space is tight. The toilet sits at standard height. The door opens inward. Everything is present. Nothing actually works.
Explore Our Grab Bars For Elderly Range
What is a Handicap Toilet?
A handicap toilet is not a standard toilet with a grab bar for the elderly added beside it. The difference is in the entire zone around the fixture.
Seat height sits at 450 to 480 mm, so users aren’t lowering to an extreme depth and fighting to push back up. Clear floor space on the transfer side is a minimum 800 mm so a wheelchair can pull alongside properly. The toilet position relative to the wall ensures the grab bar is actually reachable from a seated position. A disabled toilet setup considers the full movement sequence, approach, transfer, use, standing, and exit, and plans every element around that.
Accessible Washroom Design Guidelines
Layout determines whether everything else works. The best fixtures in a badly planned space still fail the user.
Door and Entry: The door must open outward or be sliding. An inward-opening door means a user who falls near it cannot be reached from outside. The clear doorway width must be a minimum of 900mm. A D-shaped lever handle is easier to operate than a round knob for users with reduced grip strength.
Turning Radius: A wheelchair needs a clear turning circle of 1500mm diameter inside the room. Without it, the user cannot maneuver to approach the toilet, basin, or exit independently. Most washrooms for specially abled failures trace back to this being reduced to save floor area during construction.
Floor Surface: Anti-slip flooring rated for wet conditions is a baseline. Smooth tiles look clean but are dangerous when a user is transferring without a carer.
Fixture Placement: Every control, flusher, soap dispenser and paper holder must be reachable from a seated or standing-with-support position. Nothing above shoulder height. Nothing requiring a reach across the body.
| Element | Recommended Dimension |
| Toilet seat height | 450 to 480mm from finished floor |
| Clear floor space beside toilet | Minimum 800mm on transfer side |
| Distance from side wall to toilet centerline | 450 to 500mm |
| Turning radius inside room | 1500mm diameter |
| Basin height | 800 to 850mm |
| Knee clearance under basin | 680mm height, 500mm depth |
| Door clear opening width | Minimum 900mm |
| Grab bar height | 750 to 850mm from floor |
| Grab bar diameter | 32 to 40mm |

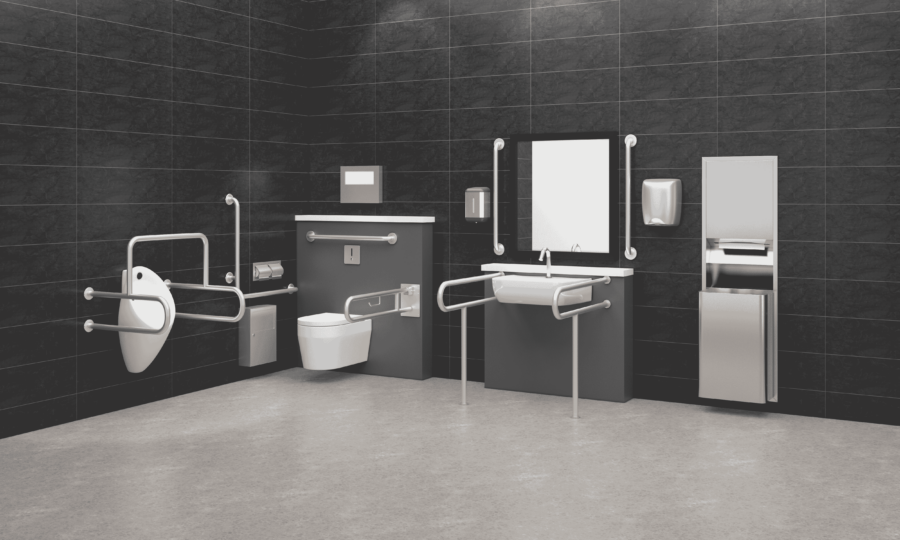

Accessible Grab Bars: Types and Placement
Grab bars are the most critical safety element in a handicap washroom. But placement matters more than presence. A bar in the wrong position at the wrong height offers no functional benefit.
Euronics offers one of India’s most complete grab bars and support accessory ranges in 304 stainless steel and nylon, across every configuration an accessible washroom requires.
Straight Grab Bar (EGR01 / NGR01) Mounted horizontally beside the toilet or vertically near the entry point. Horizontal placement supports the lowering and rising movement. Vertical placement assists with entry and repositioning. Available from 300mm to 1200mm in both stainless steel and nylon. Placement: 750 to 850mm from floor, 150 to 200mm in front of the toilet centerline on the transfer side.
L-Shaped Grab Bar for Elderly (EGR04 / NGR04) Provides support in two directions simultaneously. The horizontal arm assists sitting and standing. The vertical arm helps with approach and positioning. Ideal for corner placement beside the toilet. Available in standard stainless steel and Nero matte black finish. Placement: Vertical arm flush with the front of the toilet, horizontal arm at 750 to 850mm height.
U-Shaped Grab Bar (EGR03 / NGR03) Mounted on the rear wall behind the toilet. Gives bilateral grip so the user can push up from both sides during the standing phase. Particularly useful for users with weakness on one side. Sold as a set of two. Placement: Centered behind the toilet, horizontal arms at 750 to 850mm from floor.
Swing Grab Bar (EGRS02 / NGRS02) Folds flat against the wall when not in use. Essential in compact disabled toilet layouts where a fixed bar on the transfer side would block wheelchair approach. The user swings it down, transfers, uses it for support, swings it back before exiting. Available in stainless steel across standard, Nero and Ambria gold finishes.
Height-Adjustable Support Arm (EGRM11H) Adjusts vertically to accommodate different users without reinstallation. Ideal for hospitals, rehabilitation centres and senior living facilities where the user profile changes regularly.
Toilet Safety Rail (EGRH10) A floor-to-wall rail providing lateral support. Useful in retrofit situations where wall structure may not carry standard grab bar anchor loads.
Common Mistakes to Avoid
Wrong grab bar side: The primary bar goes on the transfer side, the open side the wheelchair approaches from. Placing it on the wall side makes it unreachable during the movement that matters most.
Incorrect bar height: Above 900mm forces upward reaching. Below 700mm forces a destabilising forward lean. The 750 to 850mm range exists for a reason.
Undersized turning space: Cutting the 1500mm turning circle to save floor area produces a room a wheelchair enters but cannot turn inside.
Inward-opening door: A user who falls against it from inside cannot be helped without breaking the door.
Grab bars anchored without structural backing: A bar pulling from a tiled wall during use is a serious injury risk. Anchor into solid structure or a rated backing plate.
Accessories set for standing users only: In a handicap toilet, mirrors start at 900mm. Dispensers, tissue holders and flush controls follow the same seated-reach logic.
Conclusion
A handicapped toilet done right gives someone back the one thing poor design quietly takes away: independence. It comes down to dimensions, placement, and fixtures chosen for actual use rather than visual compliance.
Euronics supplies a complete accessible washroom range, including stainless steel and nylon grab bars, swing and height-adjustable support arms, folding shower seats and sensor-based washroom automation, all specified for Indian commercial, hospitality, and institutional environments.
Frequently Asked Questions
What is the meaning of a handicap toilet?
A toilet and surrounding zone designed for users with physical disabilities or limited mobility. It includes raised seat height, clear transfer space and correctly positioned grab bars for independent use.
What do you call a handicap toilet?
Handicap toilets are also called a disabled toilet, accessible toilet or accessible washroom. “Accessible toilet” is increasingly preferred in professional contexts as it describes the design intent rather than the user’s condition.
What is the difference between a regular toilet and a handicap toilet?
A regular toilet sits at around 380mm seat height with no dedicated transfer space or support fixtures. A handicap toilet raises the seat to 450 to 480mm, provides 800mm clear transfer space and includes grab bars positioned for the actual sit-to-stand movement.
Is it correct to say “disabled toilet”?
Yes. Widely used in signage and building codes. “Accessible toilet” is increasingly preferred, but both are correct in professional and public sector use.
