In most commercial projects, sensor taps fittings are added to improve overall hygiene and reduce water wastage. What’s less obvious is that many of the issues people face later, such as slow response, continuous flow, or even leakage, don’t come from the tap itself. They usually come from how the sensor tap fitting was done.
You’ll often see the same pattern. Everything works fine at first. Then, after a few weeks, small inconsistencies start appearing. That’s when the installation quality starts to show.
So if you’re looking at how to install sensor faucets, it helps to think of it less as a basic fitting job and more as setting up a system that needs to work every day.
What Are Sensor Taps?
At a simple level, a sensor tap is just an automatic faucet. It detects hand movement and releases water without any physical contact. There’s no handle involved. You place your hands under the tap, water flows, and it stops once you move away.
In commercial spaces, that small change removes a lot of inconsistency. People don’t have to remember to turn the tap off. The system does it for them.

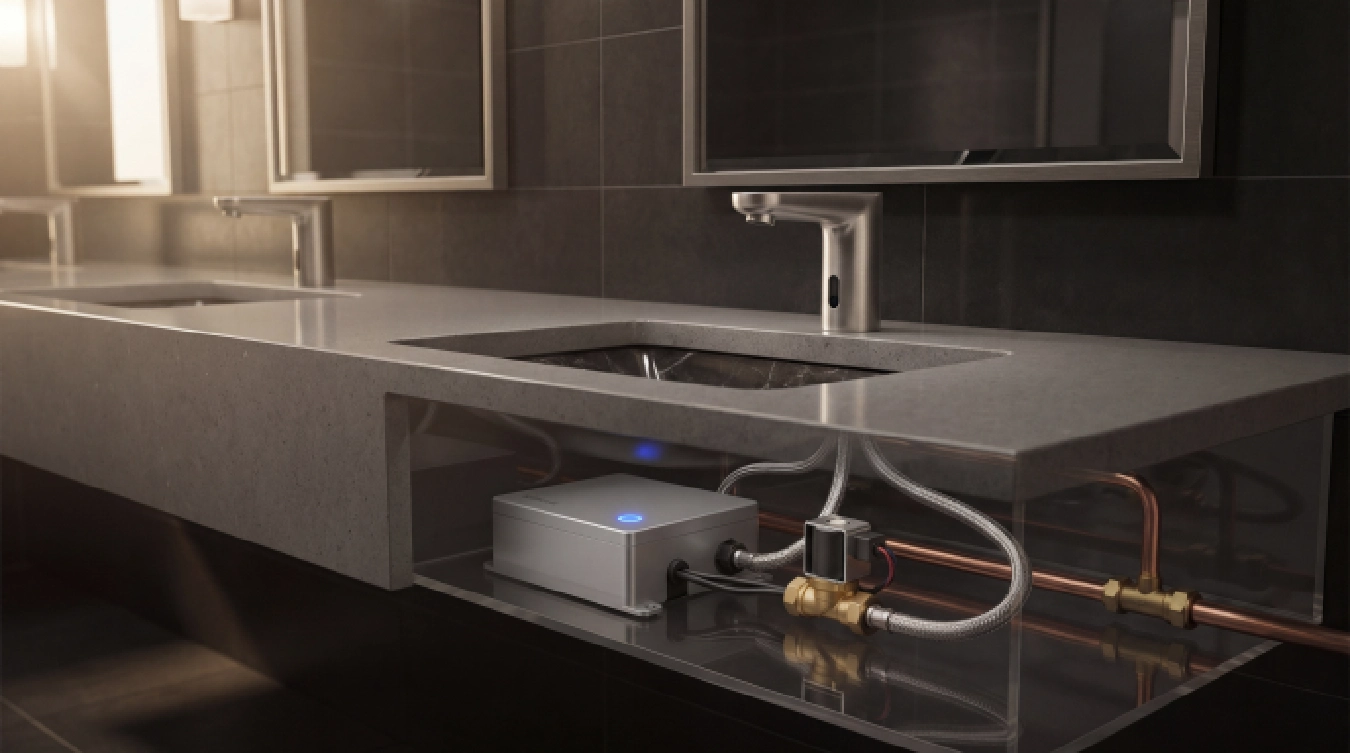

How Does Sensor Tap Fitting Work?
What you see above the basin is only one part of the setup.
Underneath, there’s a control unit and a valve connected to the water line. When the sensor detects movement, it sends a signal to that valve. The valve opens briefly and then shuts again.
It sounds straightforward, but the actual performance depends on how everything is connected. If alignment is slightly off or pressure isn’t stable, the tap may not behave as expected.
That’s why installation matters more than people assume.
Pre-Installation Requirements for Sensor Taps
Before starting, it’s worth checking a few practical things. Skipping this stage is where most issues begin.
Water pressure is one of the first checks. Too high and the flow becomes aggressive. Too low and it feels unresponsive. Then there’s the space under the basin. The control box needs room, and more importantly, it needs to stay dry. If it’s squeezed into a tight or damp area, problems tend to show up later.
A few other things usually get checked at the same time:
- Whether the existing plumbing lines align properly?
- How will power be supplied?
- If maintenance access is possible after installation
None of this is complicated, but ignoring it usually leads to rework.
Step-by-Step Sensor Tap Installation Process
The installation doesn’t always follow a perfect sequence in real settings, but the general flow remains similar.
- The tap is first positioned through the basin opening. It needs to sit straight. Even a slight tilt can affect how the sensor reads movement.
- Under the basin, the control box is placed. Ideally, in a spot that’s not exposed to water and not too difficult to reach later.
- The inlet line is connected to the valve, and the outlet goes to the tap. Connections should feel secure, not forced.
Over-tightening is just as problematic as loose fittings. - Once power is connected, testing begins.
4.1 Hands under the sensor. Water flows. Hands removed. Water stops.
In many cases, small adjustments are needed here. That’s normal. Calibration is what helps regulate water flow, especially in busy environments.
Over time, this is where sensor taps make a difference. Controlled flow means less unnecessary water usage.
Choosing the Right Sensor Tap Fitting
Not every automatic sensor tap behaves the same in a commercial setting.
Some are designed for light usage, others for continuous operation. The difference becomes visible only after installation.
Instead of focusing only on design or finish, it helps to look at things like the following:
- How consistently does the sensor respond?
- Does it handle pressure changes well?
- How easy is it to service?
- How stable are the internal components?
Manufacturers working in commercial washroom automation, including companies such as Euronics Industries Pvt. Ltd., usually design systems keeping heavy usage in mind. That becomes important in places where the tap is used hundreds of times a day.
Manual vs Sensor Taps: What Actually Changes
Most people compare these two before deciding, so here’s a simple way to look at it.
| Factor | Manual Tap | Sensor Tap |
| Cost | Lower upfront | Higher initially |
| Hygiene | Depends on the user | Touch-free |
| Water Usage | Inconsistent | Controlled |
| Maintenance | More frequent | More stable long-term |
| Usage Fit | Smaller setups | High traffic areas |
In smaller spaces, manual taps still work fine. In larger ones, consistency usually matters more.
Frequently Asked Questions About Sensor Taps
What is a sensor tap fitting?
It’s essentially the process of installing an automatic tap system that uses sensors and a valve mechanism instead of manual operation.
How to install sensor faucets in commercial spaces?
It involves placing the tap correctly, connecting the water lines and control unit, setting up power, and testing the system to ensure proper response.
Do sensor taps always need electricity?
Not always. Some run on batteries, while others use direct power depending on the setup.
Are they reliable for high usage?
They generally are, but reliability depends a lot on how they’re installed and the quality of the system.
Can they work with existing plumbing?
In most cases, yes. As long as pressure and space requirements are met, they can be fitted into existing setups.
Final Thought
Installing a sensor tap is not complicated, but it’s also not something that should be rushed.
A slight misalignment or poor connection might not show immediately, but it usually does over time.
When installed properly, a sensor tap fitting helps maintain hygiene, reduces water wastage, and keeps things consistent in busy washrooms. And in commercial spaces, consistency is what really matters.
