Stainless Steel
EIS

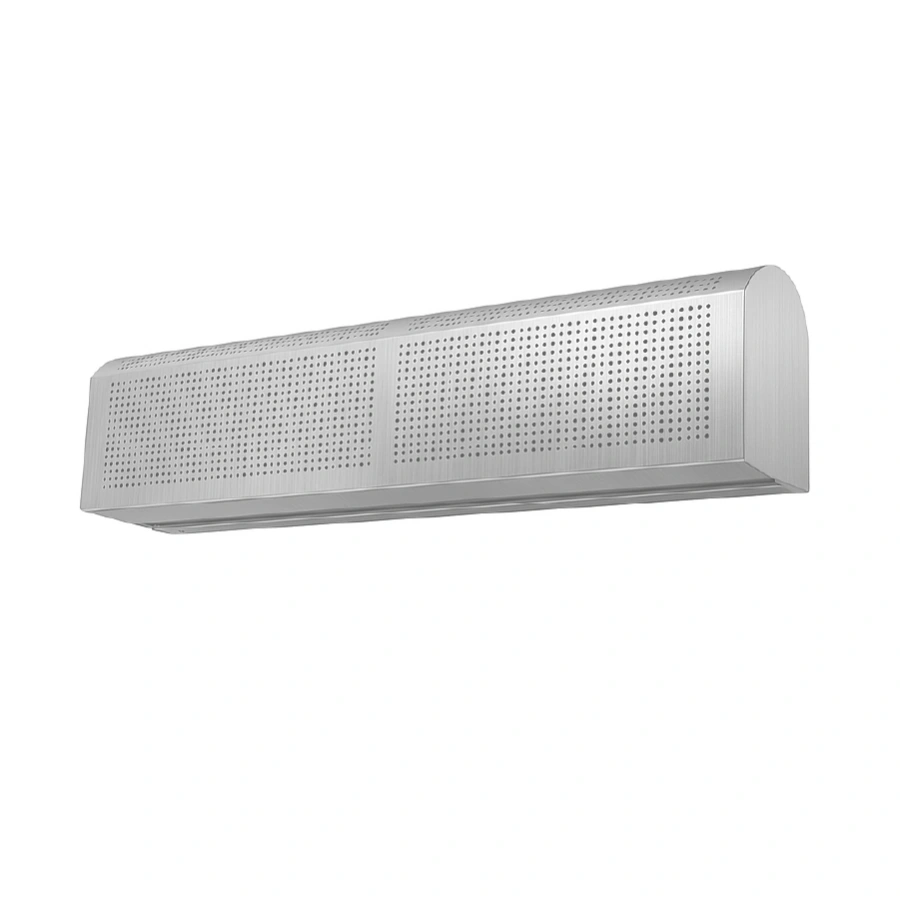

Industrial Air Curtain
Industrial Powerful Air Curtains with high quality international standards – CE GS Approved Casing made in 304 grade stainless steel, which is sealed to resist dust going inside, with fire and corrosion resistance, and easy for cleaning and maintenance.
Industrial air curtains (EIS Series) can be installed at the height of 4 to 6 meters.
Blowers are made of high quality Metal with toughness intensified High quality motor, low noise, overload protection, and long life-span. Specially designed for industries where height of door is more then 12 feet.
| Model No: | EIS3 | EIS4 | EIS5 |
|---|---|---|---|
| RPM ( Max/ Min ): | 2700 | 2700 | 2700 |
| CFM: | 2200 | 2950 | 3680 |
| Phase: | Three | Three | Three |
| Voltage: | 440v/50hz | 440v/50hz | 440v/50hz |
| Power (Wattage): | 1100 W | 1650 W | 2200 W |
| Motor HP: | 1.5 | 2.24 | 2.99 |
| Dimension ( mm): | 914 x 345 x 351 | 1218 x 345 x 351 | 1523 x 345 x 351 |
| Weight: | 44 Kgs | 50.5 Kgs | 62 Kgs |
| Max. Air velocity at Nozzle : | 24 m/s | 24 m/s | 24 m/s |
| Body Material: | Stainless Steel – 304 Grade | Stainless Steel – 304 Grade | Stainless Steel – 304 Grade |
| Effective height: | upto 22 feet | upto 22 feet | upto 22 feet |
| Blower material: | M.Steel | M.Steel | M.Steel |
| Noise Level dB: | <65 db | <66 db | <68 db |
| No. of Blowers: | 2 | 3 | 4 |
| No. of Motors: | 1 | 2 | 2 |
| *Parameters may vary 5 – 10% depending on various conditions. | |||
| Warranty: | 1 year | ||
