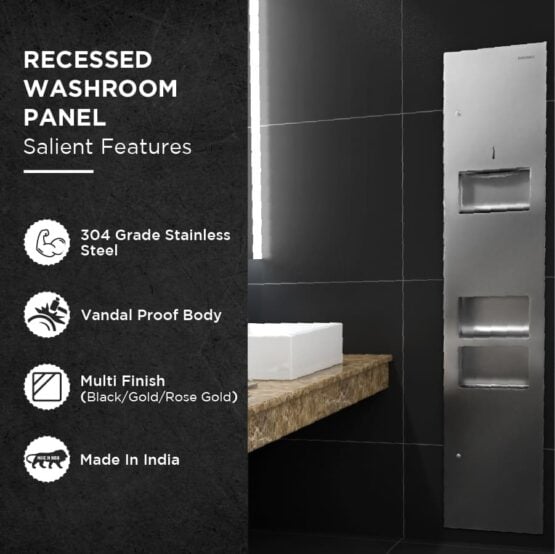

| Door : | 18-8, Type-304, Stainless Steel |
| Cabinet : | 18-8, Type-304, Stainless Steel |

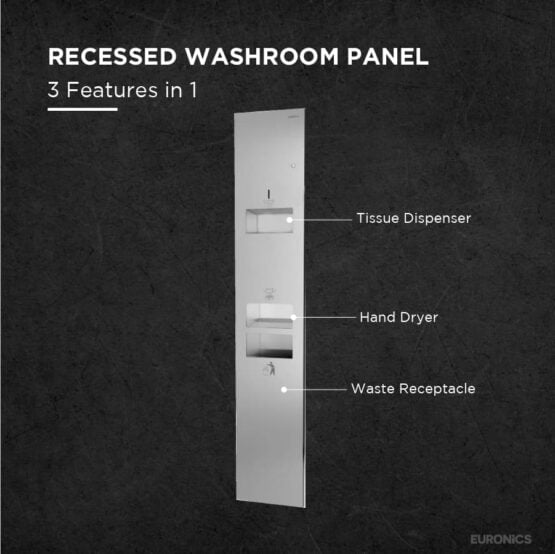

| Paper Dispenser : | 18-8, Type-304, Stainless Steel |
| Capacity : | 600 C-Fold or 800 Multi Fold Paper Towel |
| Hand Dryer : | 1350W |
| Waste Container : | 18-8, Type-304, Stainless Steel |
| Capacity : | 21 Litres |

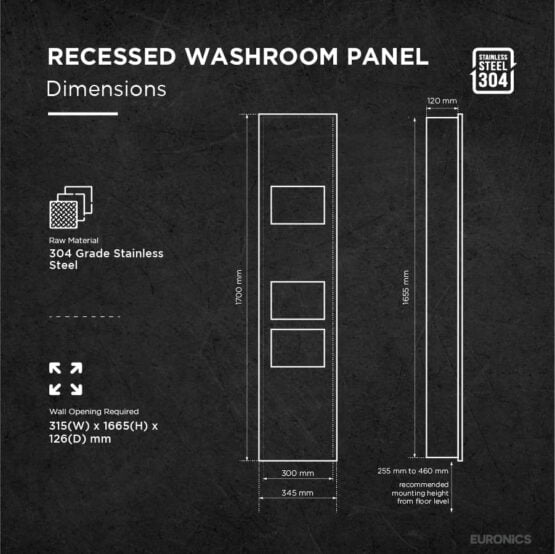

| Wall Opening Required : | 315mm (W) x 1665mm (H) x 126mm (D) |
INSTALLATION
Provide framed rough wall opening W-315mm x H-1665mm x D-126mm Minimum recessed depth required from finish face of wall is 150mm.
Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between flange and finish
face of wall.
Dryer Wiring Instructions: Connect the 230-volt wires as follows. The neutral wire should be connected to the terminal marked N
Recommended Height: 255-460mm from the floor level
